tessFOV will plot the footprint of NASA's TESS Spacecraft pointings on your existing matplotlib.pyplot.Axes objects. tessFOV uses the tess-point package to find the edges of the CCDs for any given pointing, and provides user friendly functions for plotting these footprints.
Requirements
tessFOV requires Python 3.8 or higher. The full list of module requirements can be found in the pyproject.toml file of this module.
tessFOV Functions
tessFOV has the following functions available:
add_tessfov_outline: Adds outlines for a given sector, camera, CCD
add_tessfov_shade: Adds shaded regions for a given sector, camera, CCD
add_tessfov_text: Adds labels for a given sector, camera, CCD
You can specify any number of sectors [1 ... 69], cameras [1 .. 4], or CCDs [1 .. 4].
Examples
Below are a few examples of how to use tessFOV.
Adding to matplotlib subplot

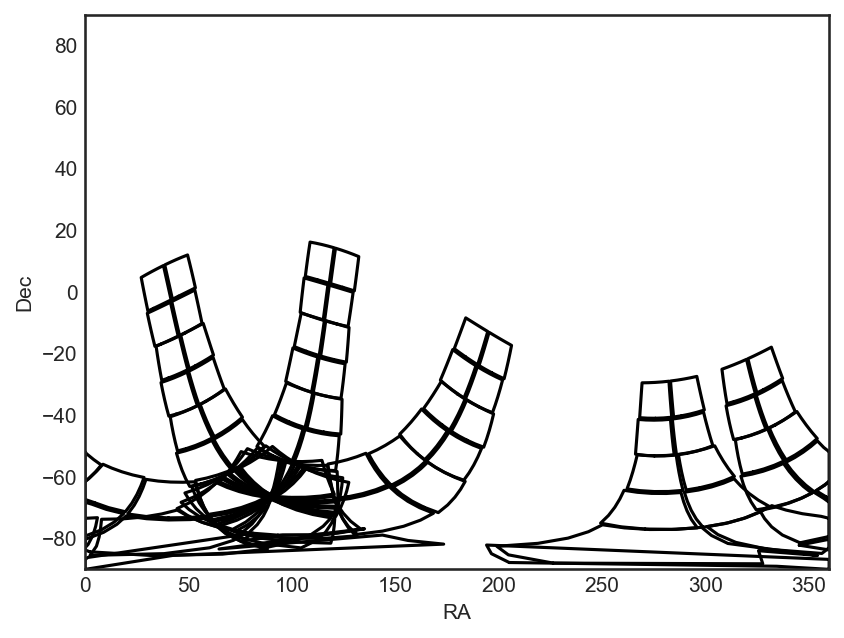

Below is an example of how to add the footprint to your existing plot. Here we plot a subset of the sectors from Cycle 1, and plot only the outlines of the CCDs. You can pass matplotlib.pyplot.plot keyword arguments to add_tessfov_outline(e.g. ls, lw, color).
from tessfov import add_tessfov_outline
fig = plt.figure(dpi=150)
ax = plt.subplot(111)
ax.set(xlabel="RA", ylabel="Dec", xlim=(0, 360), ylim=(-90, 90))
add_tessfov_outline(ax, sector=np.arange(1, 14, 3))
Examples
Below are a few examples of how to use tessFOV.
Adding to matplotlib map projections

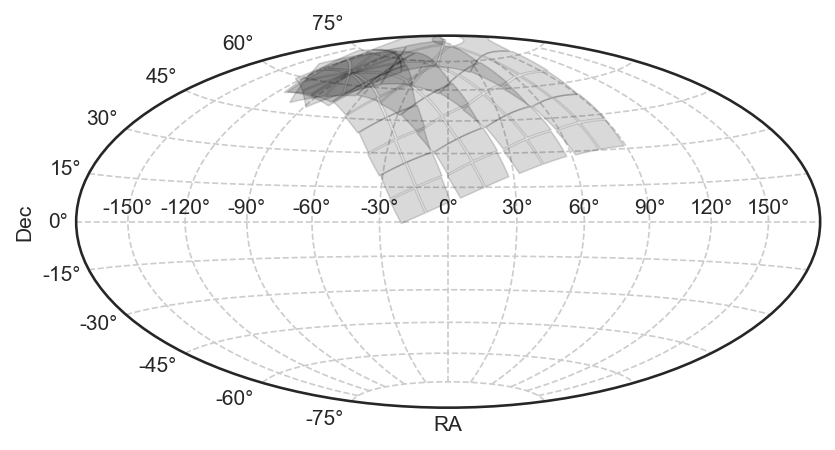

You can add the footprint to matplotlib projections (such as the 'hammer' projection). In these cases you must use the wrap_at keyword to ensure that the points "wrap" at 180 degrees. You should also use the unit 'rad' (radians), as this is what is standard for this plotting projection. Below we plot 4 sectors from Cycle 5.
from tessfov import add_tessfov_shade
fig = plt.figure(dpi=150)
ax = plt.subplot(111, projection="hammer")
add_tessfov_shade(
ax, sector=np.arange(56, 60), unit="rad", wrap_at=180, rasterized=True
)
ax.set(xlabel="RA", ylabel="Dec")
ax.grid(True, ls="--")
Examples
Below are a few examples of how to use tessFOV.
Adding one CCD

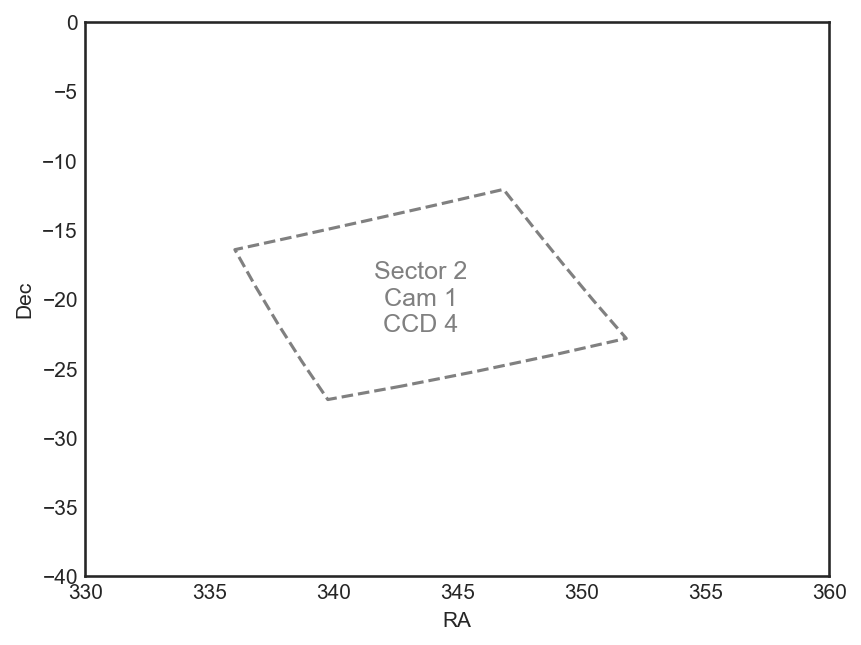

You are able to use tessFOV to plot a subset of sectors, cameras and CCDs. Below we plot a single CCD from sector 2, and add a label.
fig = plt.figure(dpi=150)
ax = plt.subplot(111)
ax.set(xlabel="RA", ylabel="Dec", xlim=(330, 360), ylim=(-40, 0))
add_tessfov_outline(ax, sector=2, camera=1, ccd=4, color="grey", ls="--")
add_tessfov_text(ax, sector=2, camera=1, ccd=4, color="grey", fontsize=12)
Gotchas
When adding shaded regions using add_tessfov_shade, you may find that the xlim and ylim of your plot do not update to capture those patches. You should adjust the xlim and ylim parameters of your matplotlib.pyplot.Axes object.
Installation
You can install tessFOV using pip:
